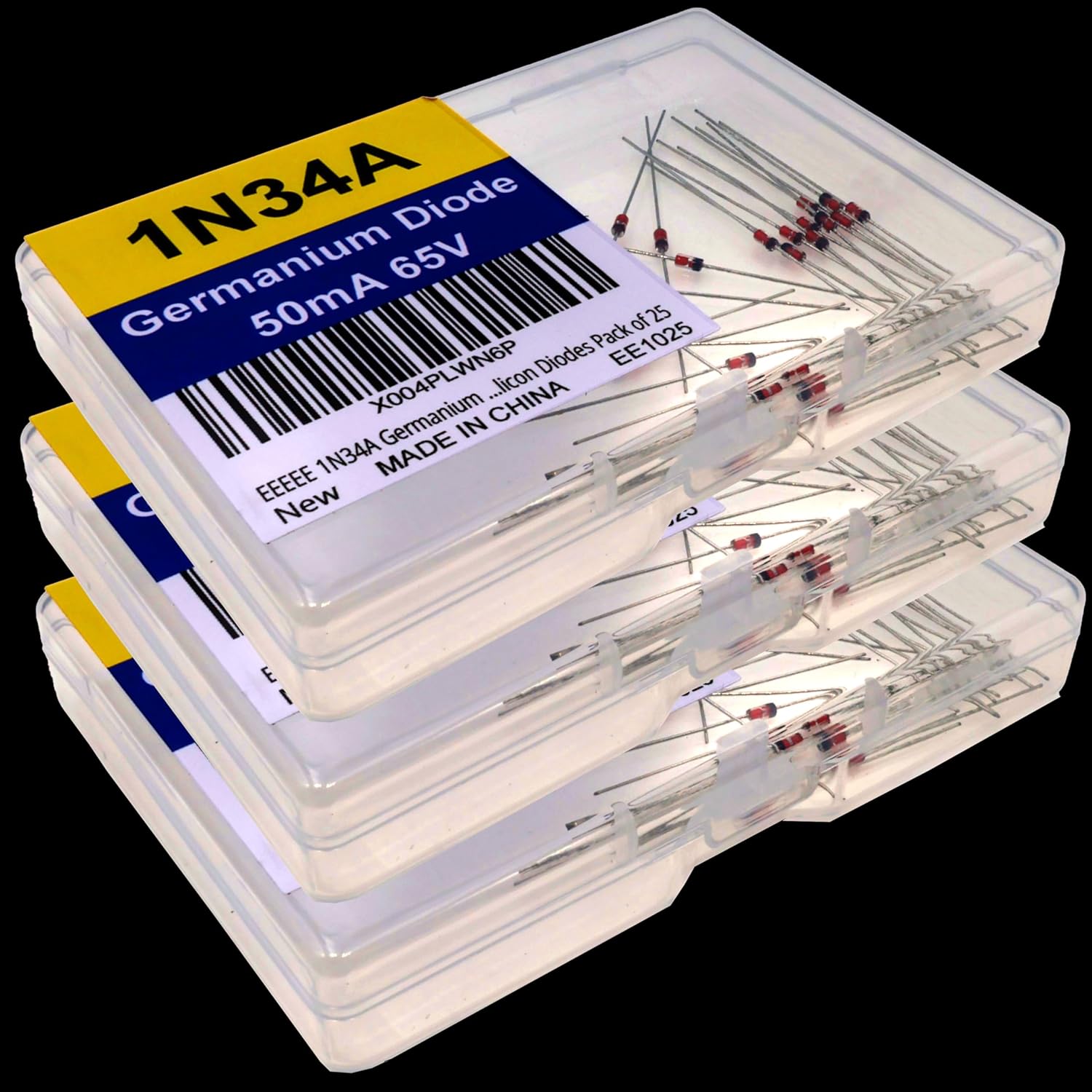

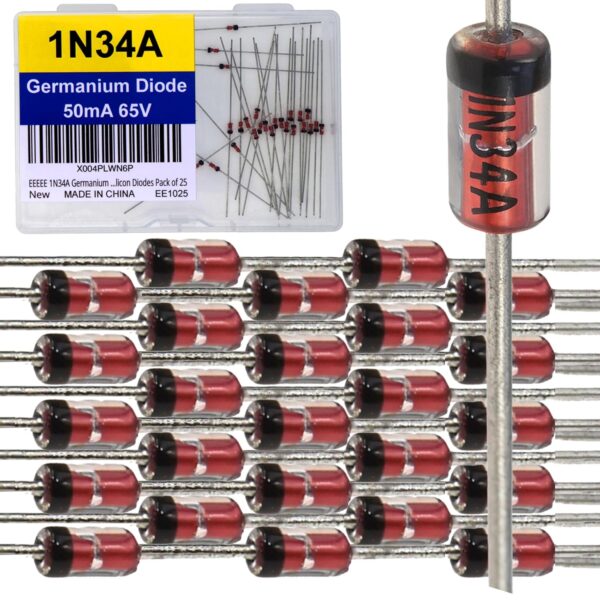

- The 1N34A is a germanium signal diode known for its low forward voltage drop (~0.2–0.3 V) and high sensitivity, making it ideal for detecting weak signals. It handles small currents efficiently with low noise, suitable for RF detection, AM/FM demodulation, and low-level rectification. Operating efficiently up to several MHz, it offers faster switching than many silicon diodes of its time. Its compact glass package ensures stability and reliability in educational, hobbyist, and vintage electronics applications.
- Low Forward Voltage Drop Only about 0.2–0.3 V, much lower than a typical silicon diode (~0.7 V). This allows it to detect very weak signals without significant loss — perfect for crystal radios.
- High Sensitivity for RF Detection Excellent for AM/FM radio demodulation, signal detection, and low-level rectification. Can work effectively with microamp-level currents.
- Germanium Material Lower barrier potential than silicon → better performance at low voltages. Also tends to produce less noise in small-signal circuits.
- Fast Switching for Its Era Though not as fast as modern Schottky diodes, it was quick enough for radio frequencies in the MHz range.
- Historic & Educational Use A staple in electronics learning kits for decades. Common in DIY crystal radio builds and vintage repair projects.
